Test Equipment

MS-106B

MS-TestPro 106 (MS106B) – Battery based, Wi-Fi Interface,
HDMI Pattern Generator 4K 4:4:4 60

  • Effortless and immediate testing of HDBaseT links of distances up to 100m
  • HDBaseT monitoring and diagnostic functionality for a full overview of the links capability
  • HDBaseT Spec 1.0 transmitter and receiver modules included
  • Certifcation for 4K video in seconds
  • 3.5″ colour LCD touch screen with stylus
  • USB connectivity for downloading of certification reports

Expansion Modules

Spec 3.0

HDBaseT Spec 3.0 Modules – TX and RX unit – HDBaseT Spec 3.0 based

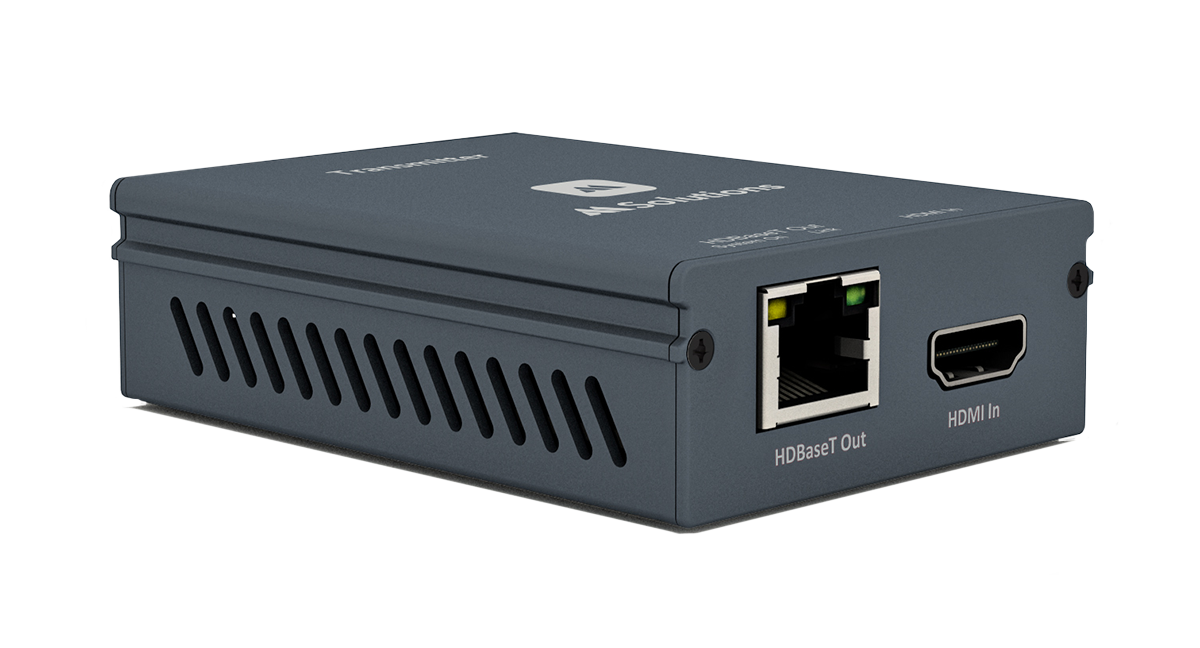

Spec 2.0

HDBaseT Spec 2.0 Modules – TX and RX unit – HDBaseT Spec 2.0 based.

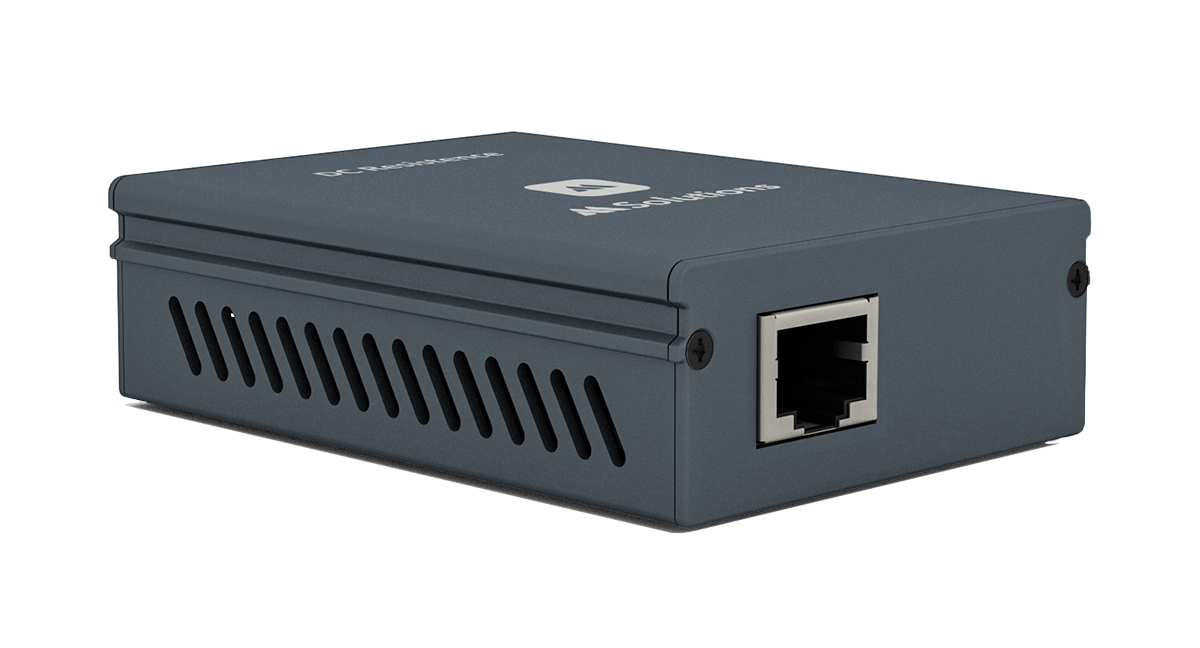

DCR

DC Resistance & Looper Modules – measures DC Resistance of CATx cables, to check ability to provide a sufficient level of PoE / PoH (Power over HDBaseT) powering.

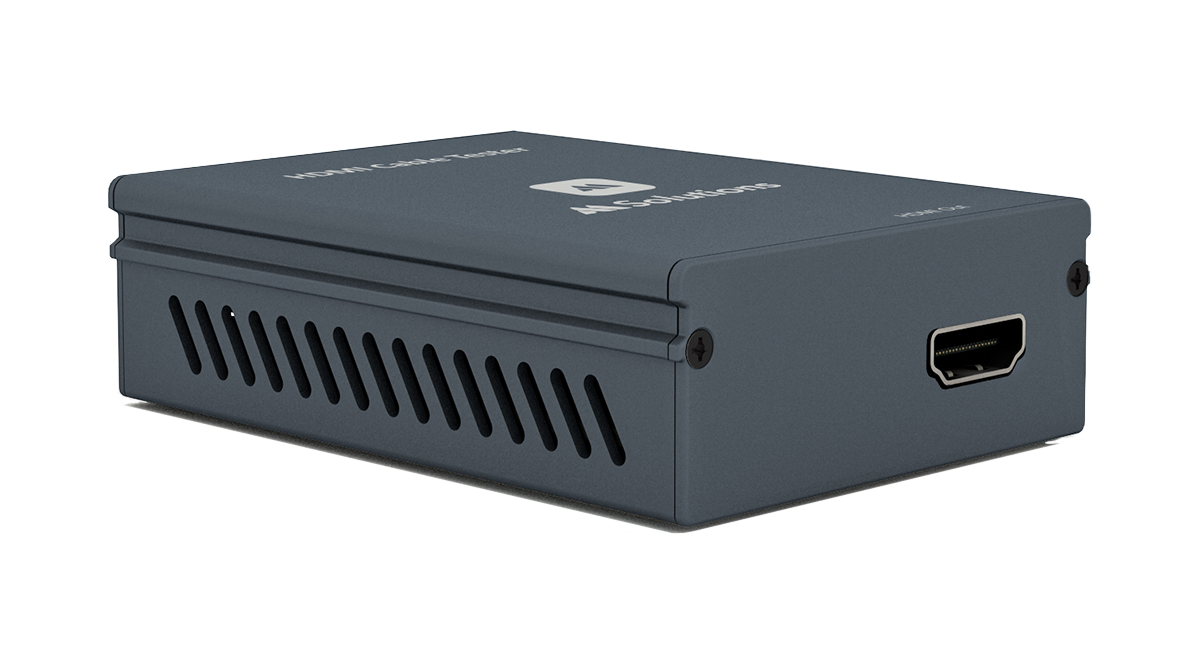

HCT

HDMI Cable Test Module – ensures compliance to Standard / High-Speed bandwidth requirements including 48Gbps support

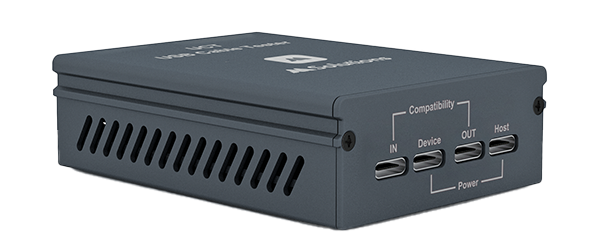

UCT

The tester allows for the DC measurement of the internal wiring. Determine the USB-C features, USB2.0 (480Mbps), USB3.1 (Gen1 up to 5Gbps), USB3.1 (Gen2 up to 10Gbps), charging, monitor/laptop power, audio support, video and quality.

AVoIP

AV over IP Network Capability Test update – MAC/IP addresses with Ping and config, network nodes, SNMP information, IGMP Snooping for VLAN, immediate / fast leave
