HCT

HDMI Cable Test Module – ensures compliance to Standard / High-Speed bandwidth requirements including 48Gbps support

Description

The optional HDMI Cable Test Module enables ProAV integrators to easily evaluate cabling compatibility to the HDMI standard – including bandwidths (48 / 18 / 9 / 4.5Gbps), resolutions (HDR, UHD, HD), passive cable wiring quality, pin connectivity, and CEC support. The addition of these modules to MSolutions’ industry-leading HDBaseT testing device, offers an end-to-end ProAV testing solution from source to sink with its efficient, time-saving HDMI cable testing modules.

Price: $445.00

Key Features

  • Expansion module for the MS-TestPro 104B
  • Adds capability for HDMI Cable testing on the MS-TestPro MS-104B
  • Test passive cables for Standard, High-Speed, 18Gbps and Ultra High-Speed (48Gbps) compliance
  • Quick, simplified HDMI cable troubleshooting
  • Expands testing coverage for integrators – save time and money
  • Verifies support for HDMI2.x Ethernet and HEAC
  • True 19-pin test for all connections on a HDMI cable
  • Fast report generation in .pdf format
  • Future-proofed for 8K testing (future firmware update)

Specifications

  • HCT & Looper modules to fit into MS-104B MS-TestPro tester

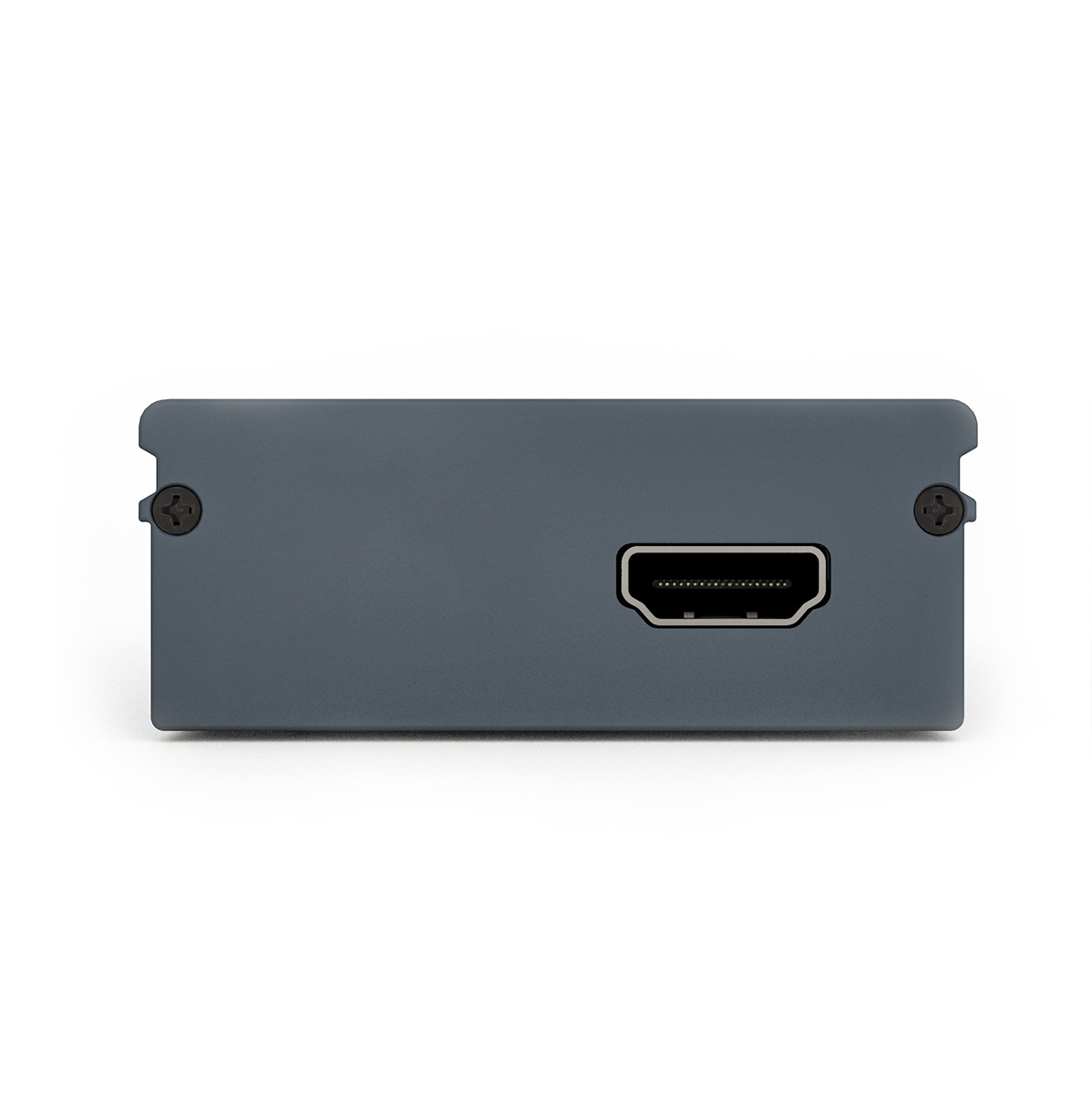

  • HCT module dimensions (W x D x H): 60mm x 84mm x 25mm
  • HCT module weight: 0.1kg

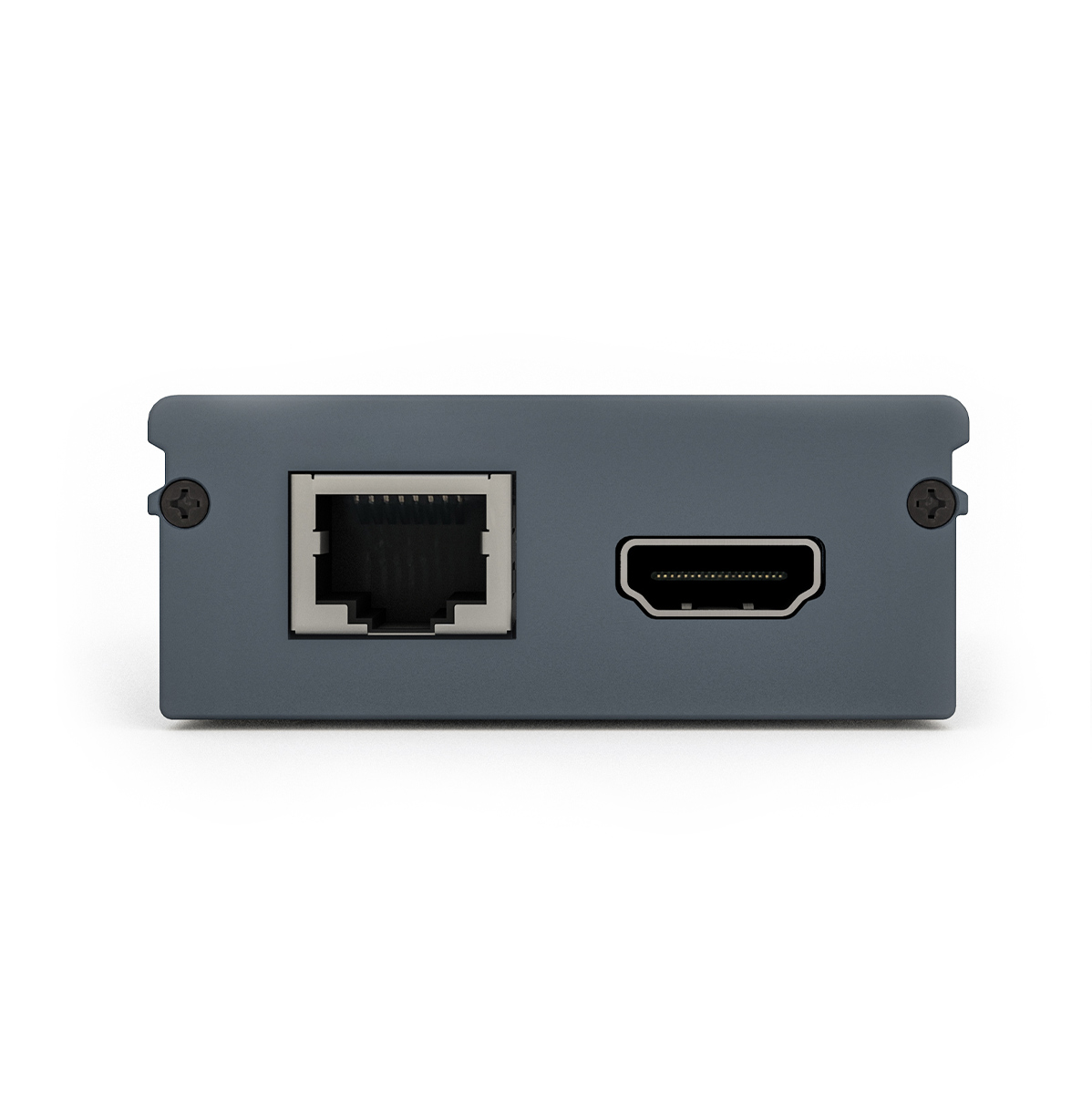

  • Looper module dimensions (W x D x H): 60mm x 33mm x 25mm
  • Looper module weight: 0.1kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating humidity: 0-80% non condensing

Downloads

Package Contents


  • 1 x HDMI Cable Test Module
  • 1 x Looper Module

4K & 8K HDMI Cable Testing
