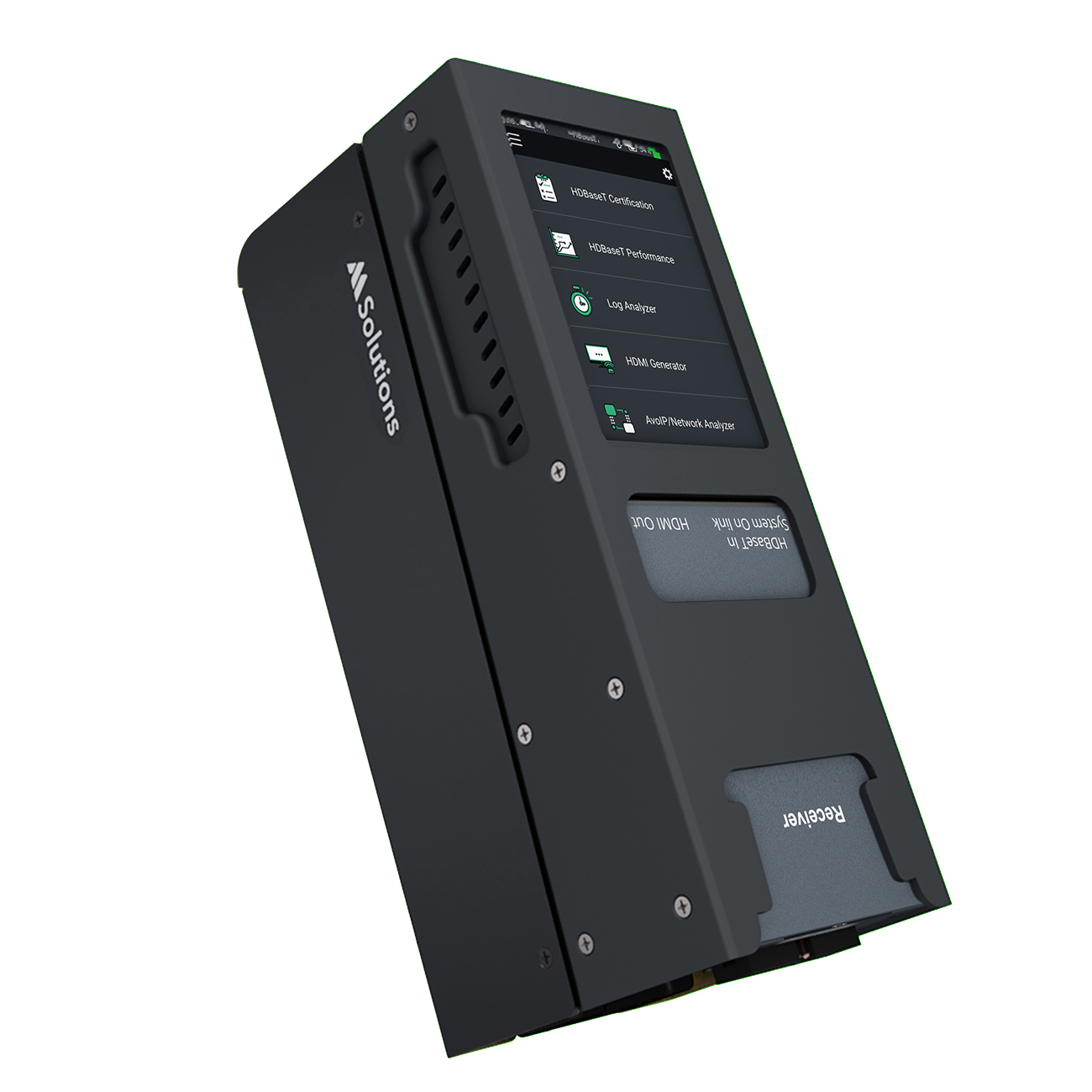

MS-106B
MS TestPro – HDBaseT Spec 1.0 Tester – battery powered, WiFi for browser based management, 3.5″ colour touchscreen, HDMI pattern generator, 4K 4:4:4 60, web-GUI
Description
The MS-TestPro MS-106B is the only HDBaseT tester that is all-inclusive, 100% reliable, portable and affordable, making it an indispensable tool for AV installers and integrators. It provides AV professionals with all the information needed while in the field to enable them to verify the integrity and stability of every system tested down to the last detail. Moreover, the MS-TestPro generates a report including all the parameters necessary to certify link quality and status for signals up to 4K Ultra High Definition. The report can then be transferred to a computer, tablet or smartphone for use by both installer and end-user.
Price: $2,900.00
Key Features
- Effortless and immediate testing of HDBaseT links of distances up to 100m
- HDBaseT monitoring and diagnostic functionality for a full overview of the links capability
- HDBaseT Spec 1.0 transmitter and receiver modules included
- Certifcation for 4K video in seconds
- 3.5″ colour LCD touch screen with stylus
- USB connectivity for downloading of certification reports
- Mains or battery powered – up to 4 hours use from a full charge
- Log testing of HDBaseT links for up to 24 hours
- Free log file analysis from an MSolutions professional
- In-built WiFi access point for remote testing capabilities from a mobile device
- Integrated HDMI test pattern generator
- HDMI EDID analyser
- In-built video guide & user manual
- IP65 rated shock-proof carry case
- Optional extension modules for testing: HDBaseT Spec 2.0, DC Resistance, HDMI Cable, AVoIP networks
Specifications
- 3.5″ colour touch screen
- Video connectivity: 1x HDMI output (female) for HDMI test pattern generation (side of unit)
- Audio connectivity: 1x 3.5mm stereo jack for audio test signal (side of unit)
- LAN connectivity: 1x RJ45 Ethernet connection (top of unit)
- 1x TX / RX module slot connected, 1x TX / RX module slot (storage)
- 4x USB ports for download of firmware / test reports
- Charger: 1x 12.6V 3A DC
- Power consumption: 7.5W
- Unit dimensions (W x D x H): 68mm x 178mm x 78mm
- Unit weight: 0.9kg
- Carry case dimensions (W x D x H): 250mm x 240mm x 115mm
- Carry case weight: 2.2kg
- Master carton quantity: 4 units
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Storage temperature: -4°F to 140°F (-20°C to 60°C)
- Operating humidity: 0-80% non condensing
Downloads
Package Contents
- 1 x MS-TestPro 106B
- 1 x MS-TestPro transmitter module – HDBaseT Spec 1.0
- 1 x MS-TestPro receiver module – HDBaseT Spec 1.0
- 1 x 12.6V 3A charger with US, UK & EU territory clips
- 1 x Remote termination block

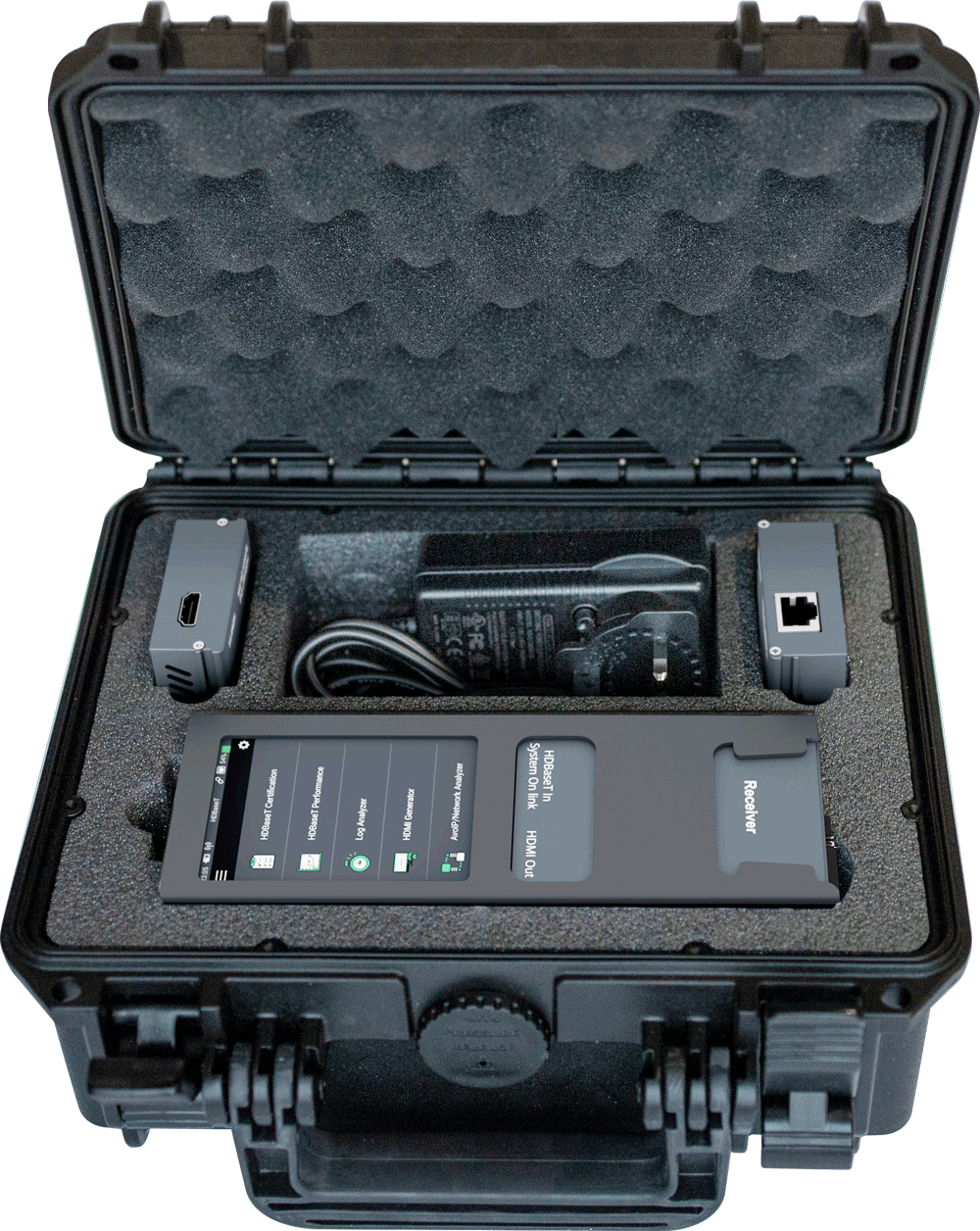

- 1 x Ruggedised carry case
