MS-HD90-3U
Ultimate Tracking Camera
Key Features
Full-featured USB interface
Full-featured USB2.0 interface, supports audio, encoding output, UVC 1.1 and UVC 1.0 protocols.
Good Compatibility
Supports standard video conferencing software such as Zoom, Microsoft Teams, Google Meet and more.
Full HD Image Sensor
Equipped with a new generation of 1/2.9 inch high-quality HD CMOS sensor with 2 million effective pixels.
AI Humanoid Tracking
Embedded NNE hardware unit, uses deep learning technology, through the extraction of target features regardless of direction of face, to achieve smooth humanoid tracking.
TOF Focus
An advanced auto focusing algorithm utilizes the laser-assisted focusing instrument to achieve high-speed, accuracy.
90° Wide-angle Lens + 16x Digital Zoom
Adopts 90° high-quality ultra-wide focal lens, supports 3x optical zoom + 16x digital zoom.
Low Illumination
New CMOS image sensor with ultra-high SNR effectively reduces image noise under low illumination. Image SNRT is 55dB or above.
Remote Control
Multiple control modes, including RS232 and USB
Two Kinds of Power Supply Modes
Supports both USB 5V and DC 12V power supply.
Specifications
Camera
- Sensor: 1/2.9’’, CMOS, Max Effective Pixel: 2.07M
- Scanning Mode: Progressive
- Lens: 3x, f3.35mm ~ 10.05mm, F1.7 ~ F3.0
- Digital Zoom: 16x
- Minimal Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Shutter: 1/30s ~ 1/10000s
- White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
- Backlight Compensation: Support
- Digital Noise Reduction: 2D&3D Digital Noise Reduction
- S/N: ≥55dB
- Horizontal Angle of View: 90° ~ 30.7°
- Vertical Angle of View: 52° ~ 18.4°
- Horizontal Rotation Range: ±170°
- Vertical Rotation Range: -30° ~ +90°
- Pan Speed Range: 2.7° ~ 35.7°/s
- Tilt Speed Range: 2.7° ~ 31.5°/s
- H&V Flip: Support
- Image Freeze: Support
- Number of Preset: 255
- Preset Accuracy: 0.1°
USB Features
- Operating System: Windows 7/ 8/ 10/ 11, Mac OS X, Linux, Android
- Color System / Compression: YUY2 / MJPEG
- Video Format: YUY2 (Isochronous mode): Max 640x480P30,
MJPEG: Max 1920x1080P30 - Audio on USB: Support
- USB Video Communication Protocol: UVC 1.1
- UVC PTZ Control: Support

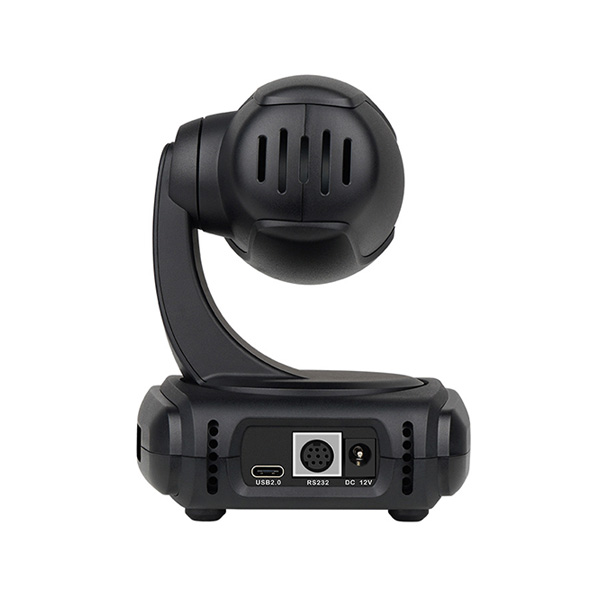

Input/output Interface
- USB Interface: 1xUSB 2.0, Type-C
- Audio Input: Built-in dual Mics
- Communication Interface: 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
- Power Jack: JEITA (DC IN 12V) /USB Type-C (DC IN 5V)
Generic Specifications
- Input Voltage: DC 12V/USB 5V
- Input Current: 12V 1.0A(Max)/5V 1A(Max)
- Operating Temperature: -10°C ~ 40°C
- Storage Temperature: -40°C ~ 60°C
- Power Consumption: 12W (Max)
- MTBF: >30000H
- Size: 144mm x 144mm x 167.9mm
- Net Weight: 0.459 kg
