HDBaseT™ Extender Set – 4K to 100m (10G), 100m @ 1080p. USB 2.0 (x2) & RS-232 pass through. HDCP2.2 compliant

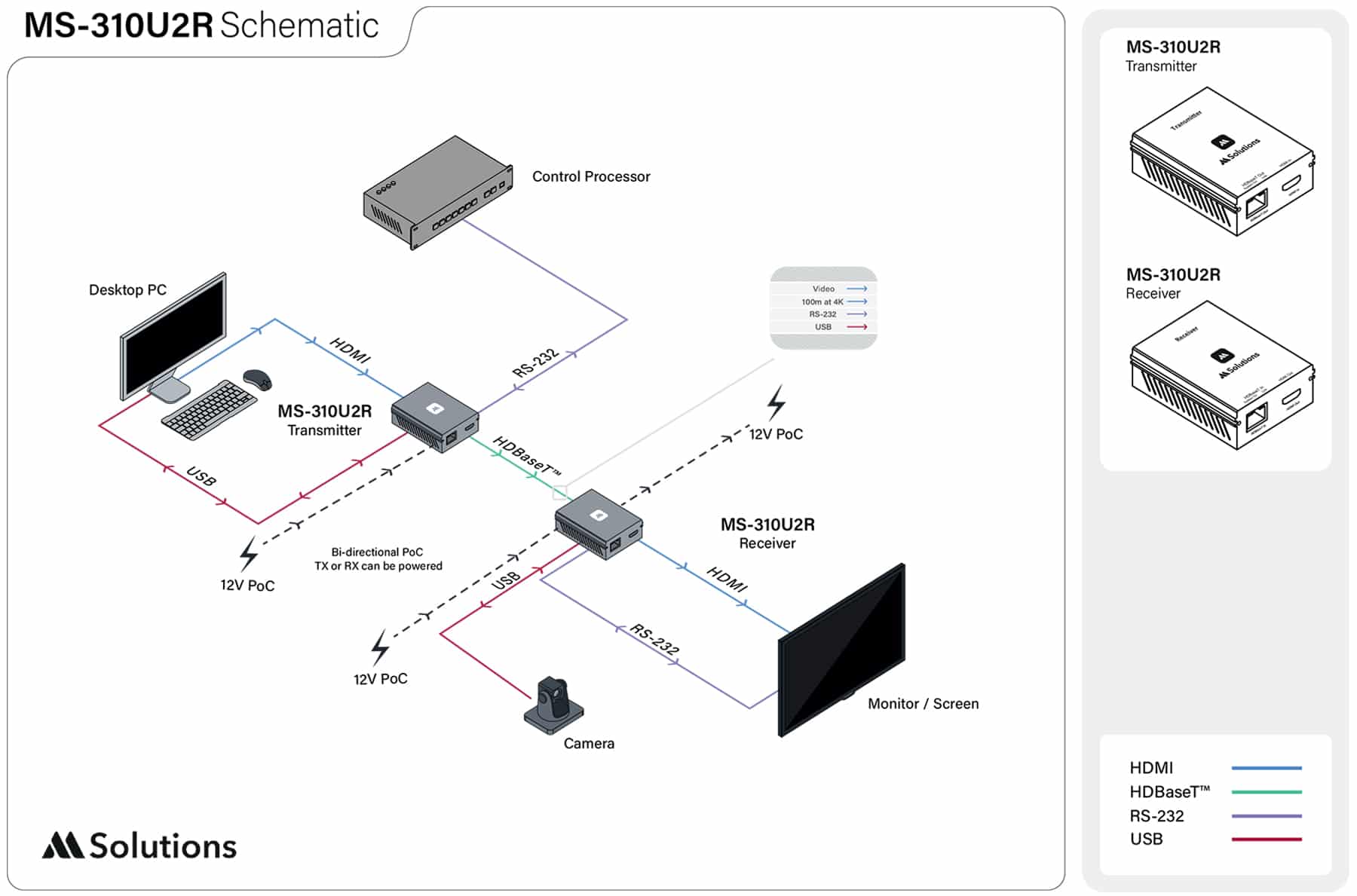

The MSolutions MS-310U2R is a 4K HDMI / KVM HDBaseT extender set allowing for uncompressed video and audio to be extended up to 100m at 4K UHD (10.2Gbps), and 100m at 1080p or lower resolutions. A 2 port USB2.0 channel allows for bi-directional USB client to host connectivity for a variety of applications. The unit also features RS-232 serial pass-through.

Key Features

  • Uncompressed extension of HDMI at resolutions up to 4K 60Hz 4:2:0 / 4K 30Hz 4:4:4 using HDBaseT technology
  • 4K signal extension to 100m over single CAT including HDR formats supported under 10.2Gbps
  • 1080p or lower video resolutions up to 100m over single CAT
  • Supports HDMI pass-through all known HDMI audio formats including Dolby Atmos / DTS:X
  • 2x USB2.0 channel for KVM connectivity of a USB device across the link – max 200Mbps data rate pass-through
  • Flexible USB extension for: USB2.0 cameras, touch screens, smart boards, hard drivers, games controllers, USB audio devices, printers, scanners or HID’s (mouse or keyboard)
  • Bi-directional RS-232 serial pass through
  • CEC (Consumer Electronics Control) pass through
  • HDCP2.2 compliant


  • Video connectivity TX: 1x HDMI input (female), 1x HDBaseT output (RJ45 keystone)
  • Video connectivity RX: 1x HDBaseT input (RJ45 keystone), 1x HDMI output (female)
  • USB connectivity (TX & RX): 1x USB Type A (female)
  • RS-232 connectivity (TX & RX): 1x 3-pin phoenix connector, block included
  • Power supply: 1x 12V 2A DC
  • Power consumption: 8W
  • Individual unit dimensions (W x D x H): 60 x 84 x 25mm
  • Individual unit weight: 0.1kg
  • Package dimensions (W x D x H): 163 x 147 x 85mm
  • Package weight: 0.5kg
  • Individual unit weight: 0.1kg
  • Master carton dimensions (W x D x H): 540 x 270 x 260mm
  • Master carton weight: 10kg
  • Operating temperature: 32 F to 119 F (0 C to 48 C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating humidity: 0-80% non condensing


Package Contents
  • 1x MS-310U2R transmitter
  • 1x MS-310U2R receiver
  • 1x 12V/2A DC power supply with US,
    UK, and EU clips
  • 2 x 3-pin phoenix connector blocks
  • 2x Surface mounting brackets
  • USB Type-A to Type-B Cable (male connectors)
