MS-USBMF

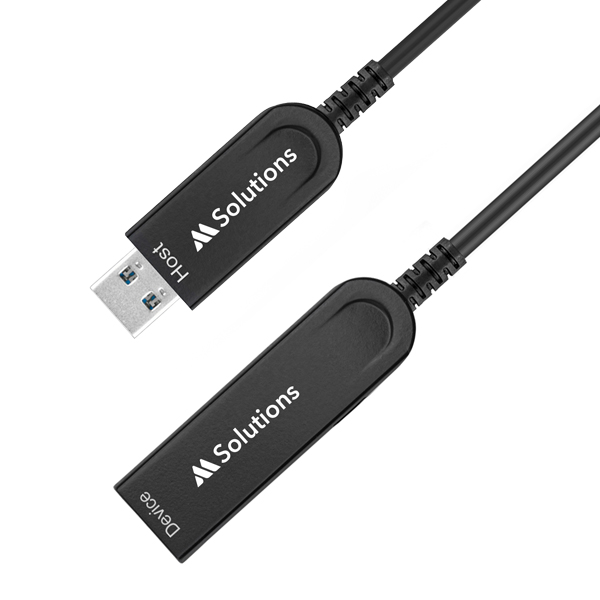

USB 3.0 Type-A Male to Female AOC Cable – 15m / 30m

Description

Our USB3.0 (data only) Type-A male to Type-A female Active Optic Cable is suited for critical and versatile installations where distance is required. This supports USB3.0 superspeed device connectivity with up to 10Gbps of data transfer over a light weight, flexible and ultra-small bend radius (40mm) in a hybrid cable.

Key Features

  • Supports USB3.0 – compatible and incompatible versions
  • Supports USB2.0 and USB1.1 devices – compatible version only
  • Supports all USB3.0 device types: control, interrupt, bulk and isochronous at up to 10Gbps
  • Operates with USB3.0 superspeed host controllers
  • Support for Windows, Linux and iOS operating systems
  • Plug and Play – no drivers or downloads required
  • cables are of CMP (Plenum-rated)

Specifications

  • Cable Diameter: 4.5mm
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating Humidity: 10-80% non condensing
  • Available in Lengths: 15m and 30m
  • Package Contents: 1x MS-USBAA Cable – 15m or 30m
  • Compatibility: MS-USBMF-15-BC USB 3.0 AM-AF AOC, (Compatible Version), MS-USBMF-30 USB 3.0 AM-AF AOC, (Incompatible Version)
