MS-HD58-10U

USB2.0 HD Video Conference Camera



Key Features

  • Full-featured USB interface
    USB2.0 interface, support audio, support for encoding output, support UVC v1.5 protocol.
  • 1080P full HD
    High-quality HD CMOS sensor with 2.07 effective megapixels for high-quality images up to 1920×1080.
  • Low illumination
    The ultra-high noise-to-noise ratio of the new CMOS image sensor can effectively reduce the image noise in low illumination conditions, and the 2D and 3D noise reduction algorithms can greatly reduce the image noise, even in the case of ultra-low illumination, keep the picture clean and clear. The image signal to noise ratio is as high as 55dB or more.
  • Remote control
    The camera can be controlled using RS232.
  • H.264 Slice/ H.264 SVC encoding support
    The output H.264 stream supports Slice and SVC encoding modes for high-end USB conferencing video applications.
  • Double stream
    At the same time support two streams of stream output (YUY2, MJPEG, H.264 two), to reduce the host codec pressure.

Specifications

  • Video System: 1080P, 720P, 540P, 480P, 360P, 240P etc.
  • Sensor: 1/2.7”, CMOS, Effective Pixel: 2.07M
  • Scanning Mode: Progressive
  • Lens: 10x, f5.13mm ~ 46.3mm, F1.8 ~ F2.8
  • Digital Zoom: 16x
  • Minimal Illumination:  0.5 Lux @ (F1.8, AGC ON)
  • Shutter:  1/30s ~ 1/10000s
  • White Balance: Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
  • Backlight Compensation: Support
  • Digital Noise Reduction: 2D&3D Digital Noise Reduction
  • Video: S/N ≥55dB
  • Horizontal Angle of View: 53.6° ~ 6.41°
  • Vertical Angle of View: 31.7° ~ 3.61°
  • Horizontal Rotation Range: ±170°
  • Pan Speed Range: 2.7° ~ 35.7°/s
  • Tilt Speed Range: 2.7° ~ 31.5°/s
  • H & V Flip: Support
  • Image Freeze: Support
  • Number of Preset: 255
  • Preset Accuracy: 0.1°
  • Operate System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
  • Color System / Compression: YUV 4:2:2 / H.264 / MJPEG
  • Video Format:
    – H.264 AVC: max to 1080P@30fps
    – H.264 SVC: max to 1080P@30fps
    – MJPEG: max to 1080P@30fps
  • Audio on USB: Support
  • USB Video Communication Protocol: UVC 1.1~ 1.5
  • UVC PTZ: Support

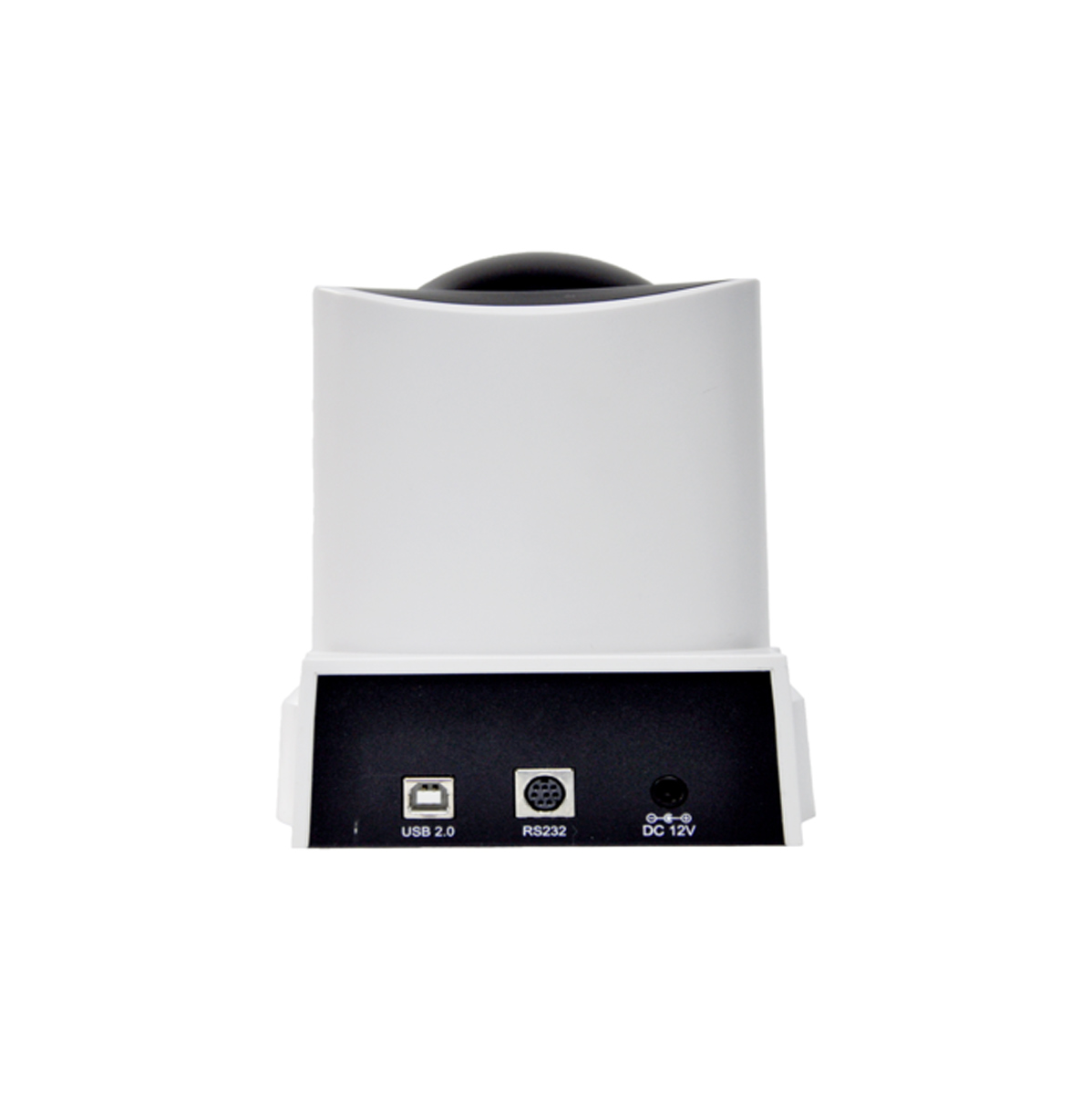

  • USB Interface: 1xUSB2.0: Type B female jack
  • Communication Interface: 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
  • Power Jack: JEITA type (DC IN 12V)
  • Input Voltage: DC 12V
  • Current Consumption: 1.0A (Max)
  • Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
  • Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
  • Power Consumption: 12W (Max)
  • MTBF: >30000h
  • Size: 141.3mm x 153mm x 163.6mm
  • Net Weight: 1.153 KG
