MS-6U1CP

USB-C & 12V Power Extender Set – up to 100m For extending USB Cameras and power over a single cable

Previous
Next

Description

The MSolutions MS-6U1CP is a professional grade USB-C extender allowing for a single USB-C data channel to be extended to distances of up to 100m over a single CATx cable infrastructure. The extender features RS-232 serial pass-through, and 12V PoC (Power over Cable) from the Host side to supply 12V 2A DC power for connected VC equipment at the Device side.

Key Features

  • Solves the challenge of extending USB camera data and power over a single category cable up to 100m

  • 12V output on Device side for remote powering of connected VC equipment (or PoC to the TX if power to the VC device is not required)

  • 1x USB-C channel for up to 320Mbps data connectivity of USB-C devices across the link

  • Flexible USB extension for: USB-C PTZ cameras, hard drives, laptops and other USB-C peripherals

  • Bi-directional RS-232 serial pass through

  • Bi-directional 12V PoC (Power over Cable)

Specifications

  • USB connectivity TX: 1x USB-C (female) – data only
  • USB connectivity RX: 1x USB-C (female) – data only

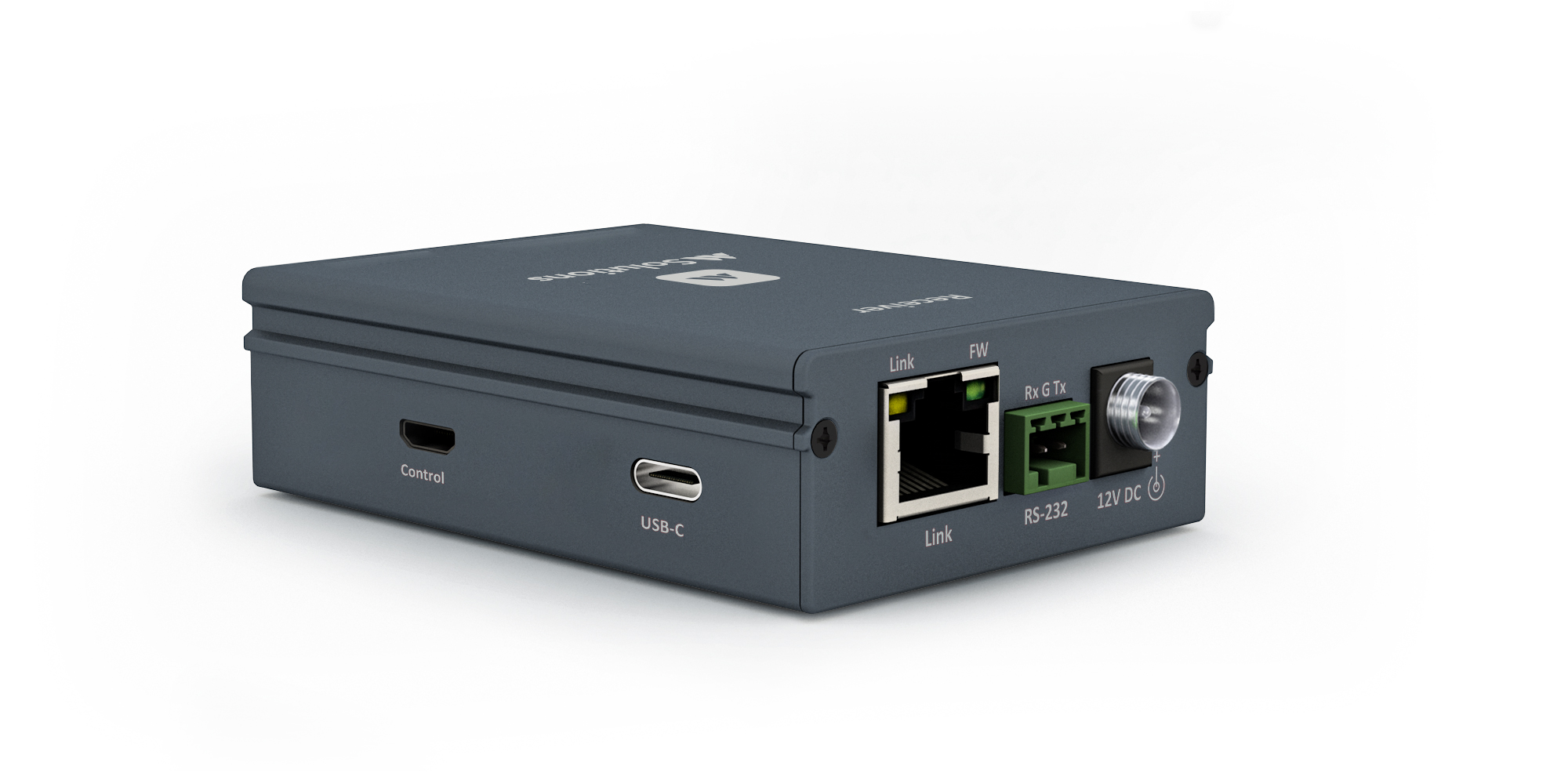

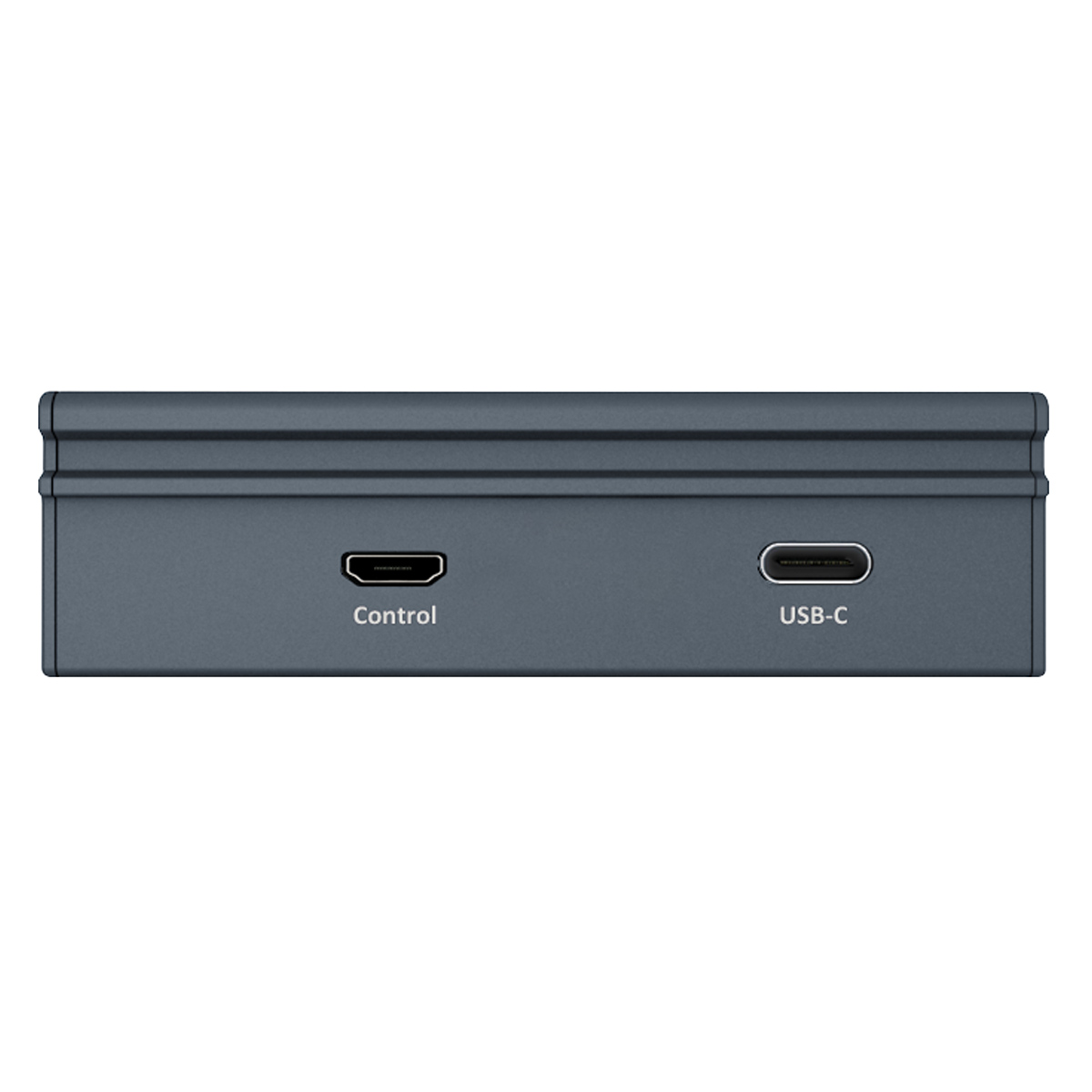

  • Micro-USB connectivity (TX & RX): for product update, and Cloud control (future)

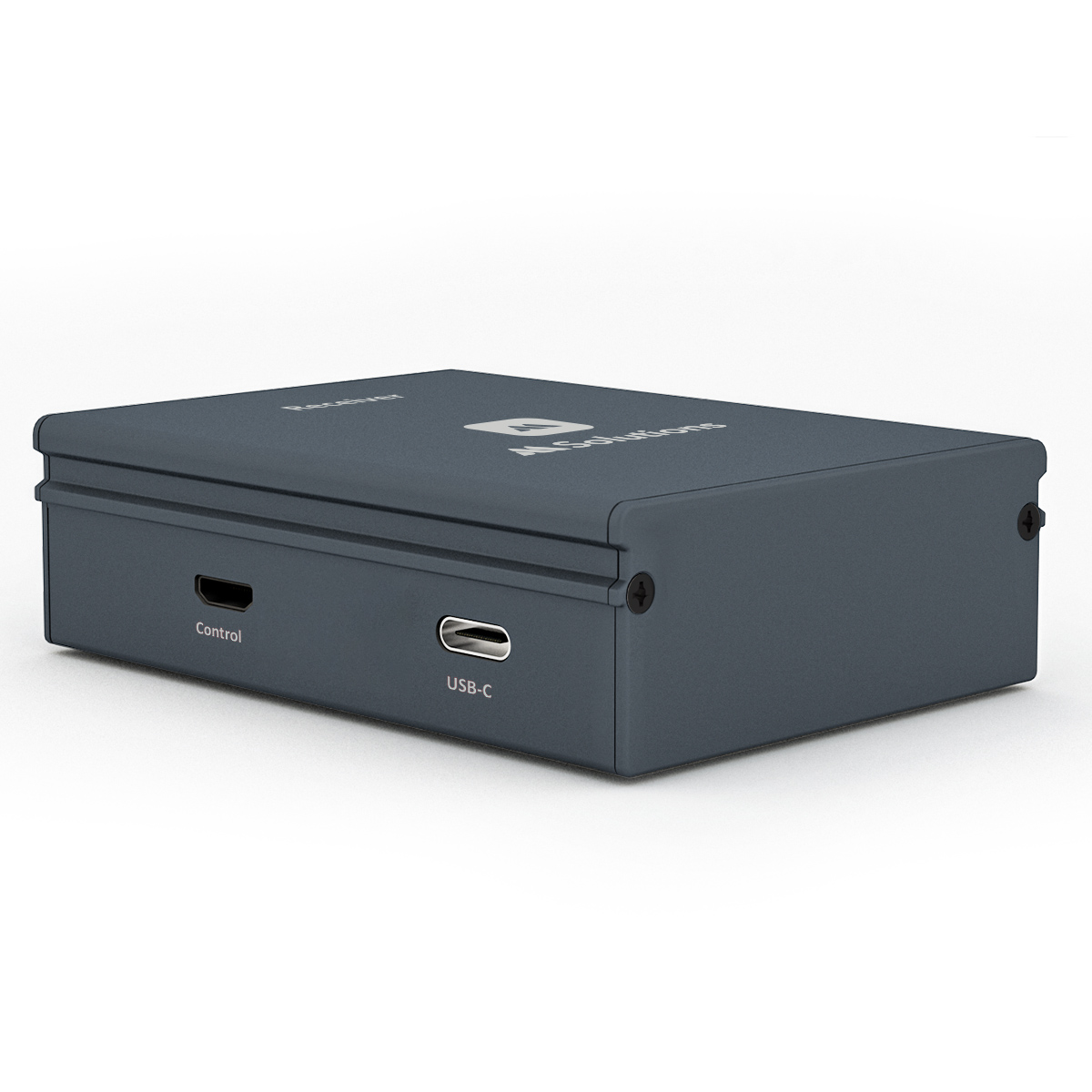

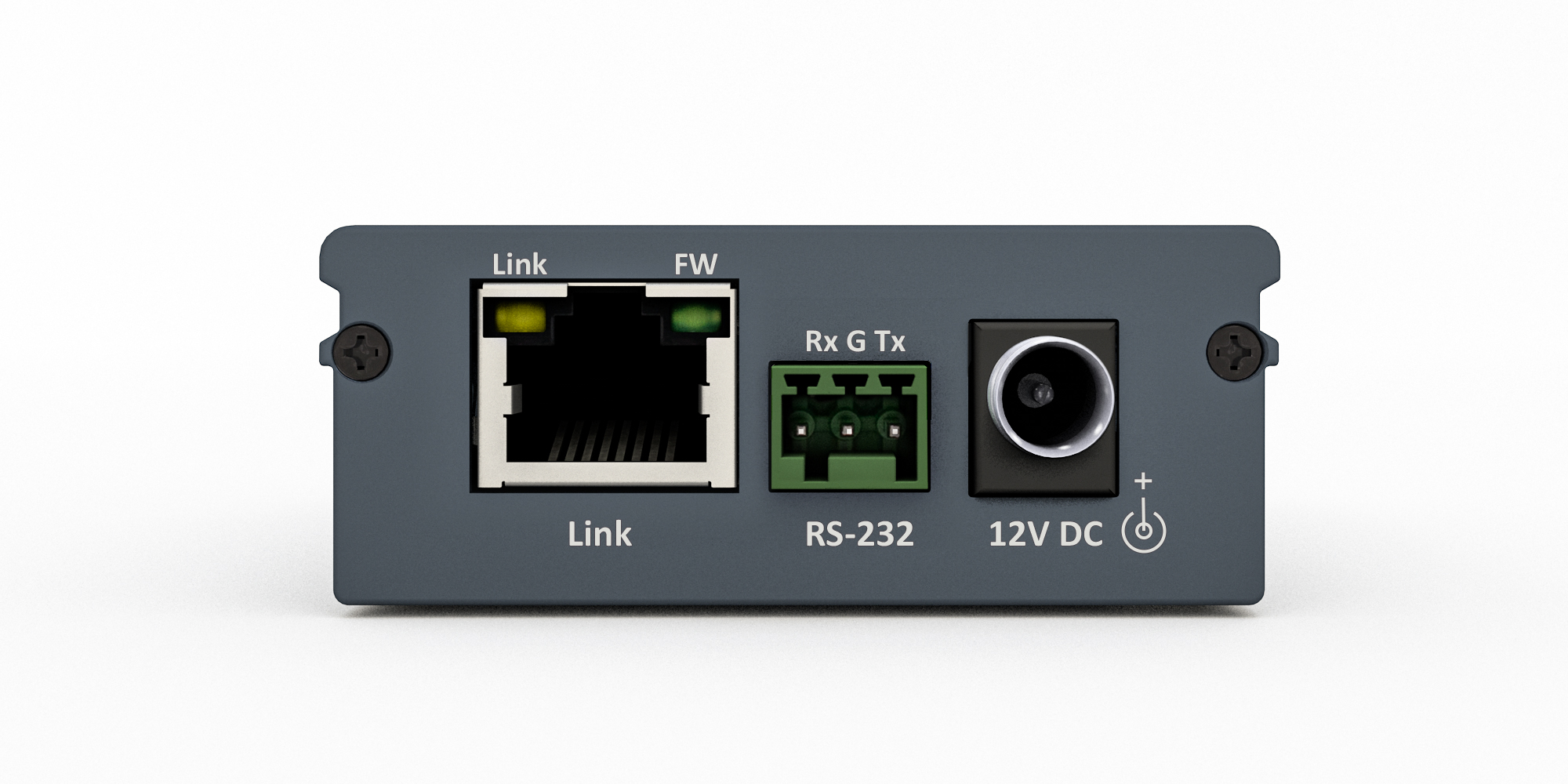

  • RS-232 connectivity (TX & RX): 1x 3-pin phoenix connector, block included
  • Power supply: 1x 12V 2A DC – connections on either TX or RX
  • Power output (RX): 1x 12V 1.5A Max DC – for powering VC equipment on RX (where POC is coming from TX)
  • Power consumption: 4.5W
  • Individual unit dimensions (W x D x H): 60 x 84 x 25mm
  • Individual unit weight: 0.1kg
  • Package dimensions (W x D x H): 163 x 147 x 85mm
  • Package weight: 0.5kg
  • Master carton quantity: 18
  • Master carton dimensions (W x D x H): 540 x 270 x 260mm
  • Master carton weight: 10kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating humidity: 0-80% non condensing

Downloads

MS-6U1CP Datasheet
MS-6U1CP User Guide
MS-6U1CP Schematic
MS-6U1CP Images

Package Contents

  • 1x MS-6U1CP Host

  • 1x MS-6U1CP Device

  • 1x 12V 2A power supply with US,
    UK & EU territory clips

  • 2x Surface mounting brackets

  • USB-C to Type A (female) cable

  • USB-C to USB-C Cable – 1.5m
