MS-63DOC

USB-C docking extension system – up to 100m

Description

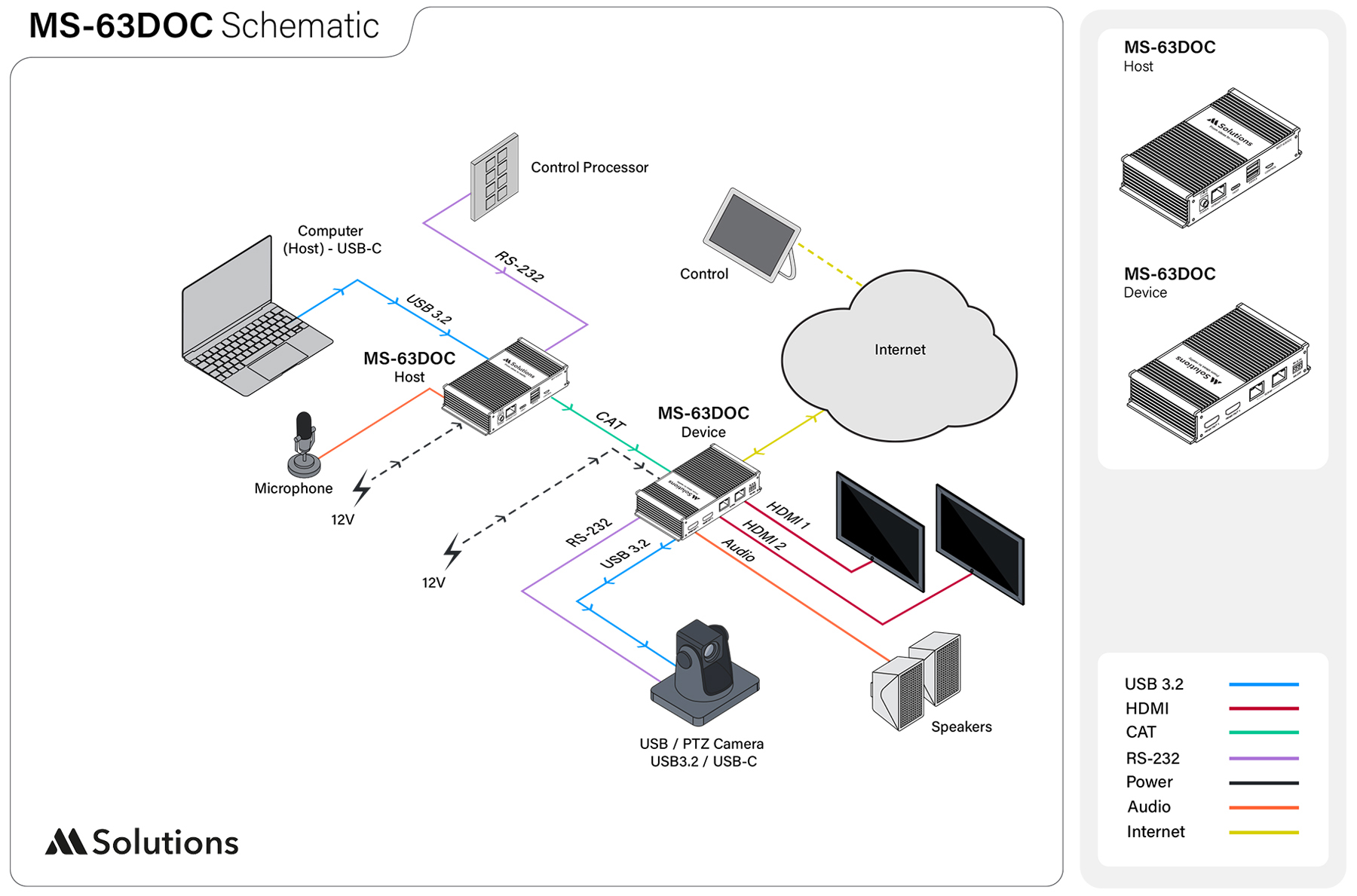

The MSolutions MS-63DOC Docking extender is a revolutionary solution that simplifies installation and consolidates all video, audio and data signals through a single USB-C cable. More than a simple receiver, the MS-63DOC Device has an internal control unit that manages all the third party units in the meeting room. It plays the role of a docking extender capable of feeding up to two displays (via separate HDMI connections), a USB device or PTZ camera (via USB 3.0 or USB-C connections) and an audio speaker.

Key Features

  • Solves the challenge of extending USB 3.2 camera data and power over a single category cable up to 100m
  • 2x USB-A channels on each Host/Devise side
  • Flexible USB extension for: PTZ cameras, hard drives, laptops and other USB peripherals
  • Bi-directional RS-232 serial pass through
  • Bi-directional 12V PoC (Power over Cable)

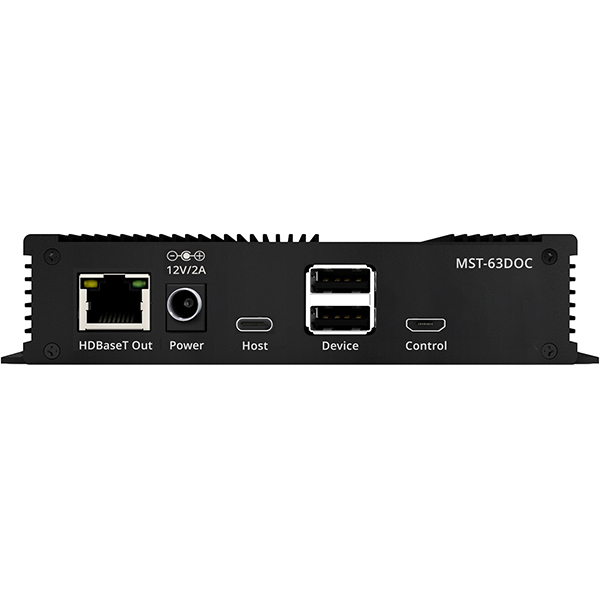

  • 1x USB-C & 2x USB-A at Host /Device side
  • Two Ethernet ports at Device side

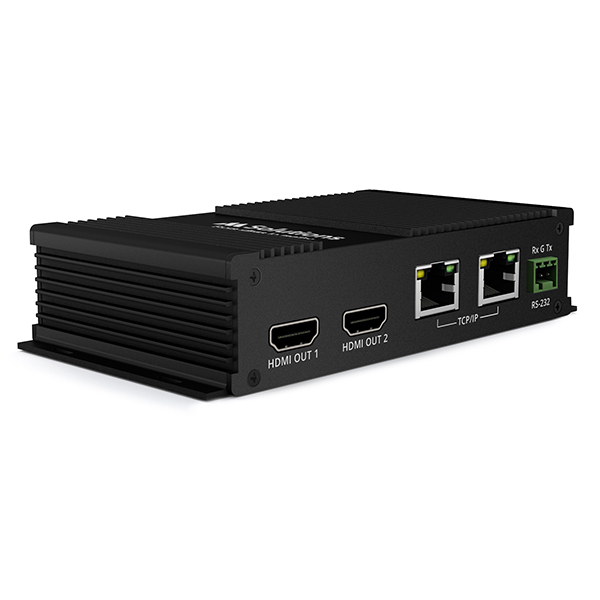

  • Extended mode display – two HDMI ports for two individual streams

Specifications

  • USB connectivity Host: 1x USB-C (female) – data & video, 2x USB-A (female) – data

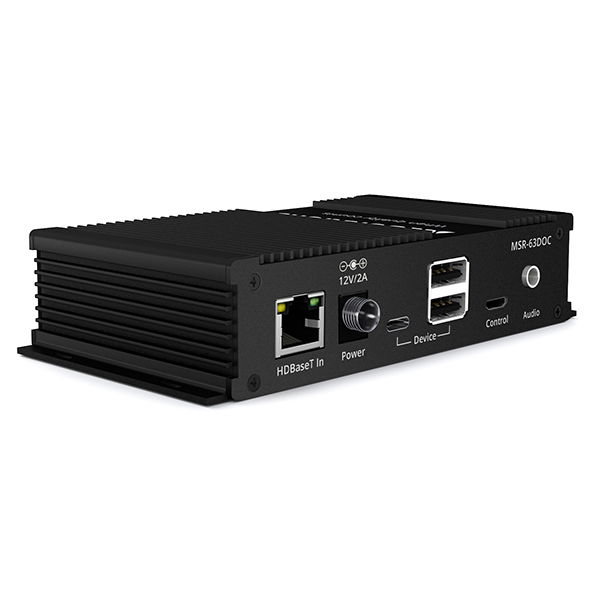

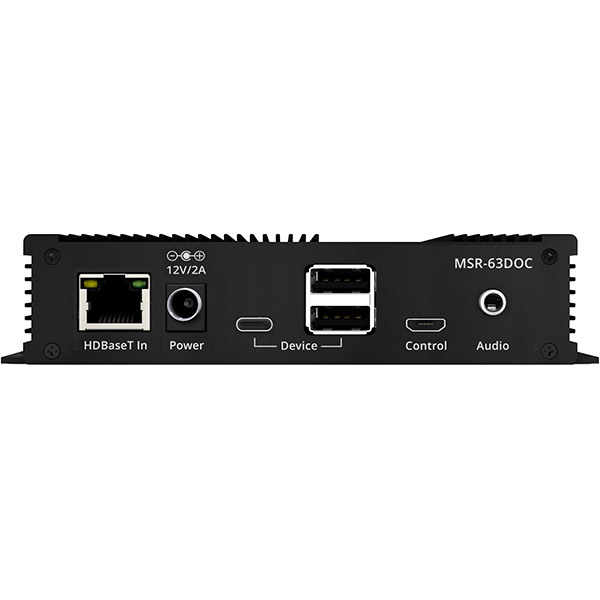

  • USB connectivity Device: 1x USB-C (female) – data, 2x USB-A (female) – data
  • Micro-USB connectivity (Host & Device): for product update, and Cloud control (future)
  • RS-232 connectivity (Host & Device): 1x 3-pin phoenix connector, block included
  • Power supply: 1x 12V 2A DC – connections on either Host or Device
  • Power consumption: 7W
  • 2x Ethernet ports RJ-45
  • Individual unit dimensions (W x D x H): 60 x 84 x 25mm
  • Individual unit weight: 300g
  • Package dimensions (W x D x H): 163 x 147 x 85mm
  • Package weight: 350g
  • Master carton quantity: 18
  • Master carton dimensions (W x D x H): 540 x 270 x 260mm
  • Master carton weight: 7.5kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating humidity: 0-80% non condensing

Downloads

Package Contents

  • MS-63DOC Host & Device
  • 1 x 12V 2A power supply with US, UK & EU territory clips
  • 1 x 3-pin Phoenix connector
  • 1 x USB-C cable
