MS-USBCA-XX

MSolutions USB 3.0 AM-Type C, AOC, Black (Backwards compatible, Data only)
(Host: USB A Male / Device: Type C), 15m / 30m

Description

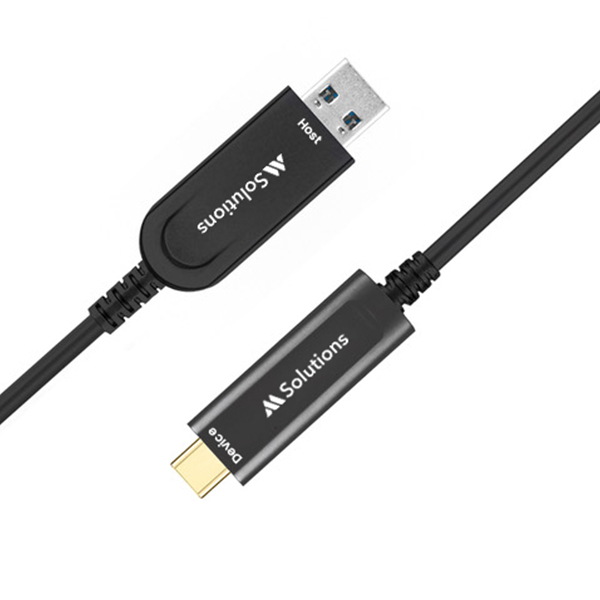

Our USB3.0 Type-A to Type-C Active Optic Cable is suited for critical and versatile installations where distance is required. This cable supports USB3.0 superspeed device connectivity with up to 10Gbps of data transfer over a light weight, flexible hybrid cable with an ultra-small bend radius (40mm).

Key Features

  • Supports USB3.0, USB2.0 and USB1.1 devices
  • Supports all USB 3.0 device types: control, interrupt, bulk and isochronous at up to 10Gbps
  • Operates with USB3.0 superspeed host controllers
  • Support for Windows, Linux and iOS operating systems
  • Plug and Play – no drivers or downloads required
  • 40mm bend radius (max)

Specifications

  • Connector dimensions (W x D x H): 18 x 52 x 9mm (Host)
  • Connector dimensions (W x D x H): 15 x48 x 8mm (Device)
  • Cable diameter: 6.5mm
  • Package dimensions (W x D x H): 200 x 200 x 65mm
  • Package weight: 0.9kg (15m); 1.2kg (30m)
  • Master carton quantity: 10
  • Operating temperature: 32°F to 122°F (0°C to 50°C)
  • Storage temperature: -40°F to 158°F (-40°C to 70°C)
  • Operating humidity: 10-80% non condensing
