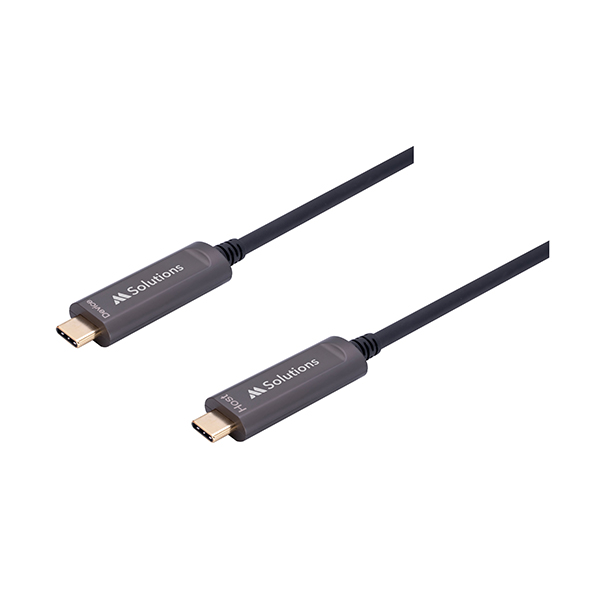

Our USB-C Active Optic Cable is suited for critical and versatile installations. This cable supports Gen 2 Superspeed connectivity with up to 10Gbps of data transfer over a light weight, flexible and ultrasmall bend radius (40mm) in a hybrid cable.
Previous
Next
Key Features
Supports USB 3.1 Gen2, 10Gbps data rates – compatible and incompatible versions
Supports USB2.0 and USB1.1 signals – compatible version only
Provides up to 5V 0.9A power
Support for Windows and iOS operating systems
Plug and Play – no drivers or downloads required
cables are of CMP (Plenum-rated)
Specifications
Cable Diameter: 4.5mm
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Operating Humidity: 10-80% non condensing
Available in Lengths: 15m and 30m
Package Contents: 1x MS-USB-C Cable – 15m or 30m
Compatibility: MS-USBCDC-15-BC USB 3.1 Type C-Type C AOC, (Compatible Version, Data only), MS-USBCDC-30 USB 3.1 Type C-Type C AOC, (Incompatible Version, Data only)
