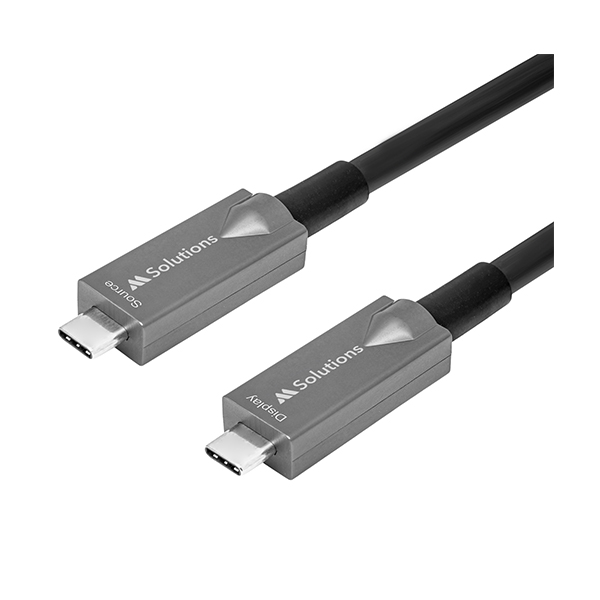

MS-USBC-DVXX BC

USB 3.1 Gen2 & DP1.4 Hybrid Type-C and Charging Active Optical Cable

Description

MSolutions USB type-C active optical cable (AOC) using optical fiber to replace copper wire as the high-speed signal transmission medium, it can perfectly transmit USB2.0, USB3.1 Gen2, 2-lane DP1.4 data with excellent signal quality, and provides up to 20V 3A power on USB3.0 data channel. Compared with the traditional copper wire, it is softer, slimmer, lighter and with perfect EMI/EMC feature. It also has better reliability performance than copper wire.

Key Features

  • Support USB 3.1 Gen2
  • Support USB 2.0 high speed and full speed
  • Support 2-lane DP 1.4
    Provides up to 20V 3A power on USB3.0 data channel
  • Plug and play without driver dependent
  • High reliability
  • Thinner, lighter and softer than conventional copper cable
  • Highly resistant to EMI and RFI

Applications:

  • Digital Signage
  • LED signboards in streets and in stadiums
  • Medical Imaging Equipment
  • Airplane On-board Video System
  • Home Theater
  • Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer
  • TV Broadcast Station
  • Conference Room Video Equipment
  • Security systems

Specifications

  • Cable Length: Up to 10m
  • Interface: USB type-C plug – USB type-C plug
  • Bandwidth: U3:10Gbps; U2: 480Mbps; DP1.4 16.2Gbps
  • Power Delivery: PD3.0, 20V 3A
  • Power Supply: By Vconn (3.0 V to 5.5V)
  • Power Consumption (TYP.): 1100mW (5V input)
  • Cable Outer Diameter: 6.5mm
  • Jacket Outer Material: PVC
  • Cable Filler: Kevlar
  • Cable Weight: See packing details sheet
  • Cable Color: Black or custom
  • Bend Radius: 10OD
  • Tensile Strength: 200N
  • Available in lengths: 5m (MS-USBC-DV05-BC), 10m (MS-USBC-DV10-BC), 15m (MS-USBC-DV15-BC)
