MS-USBAB

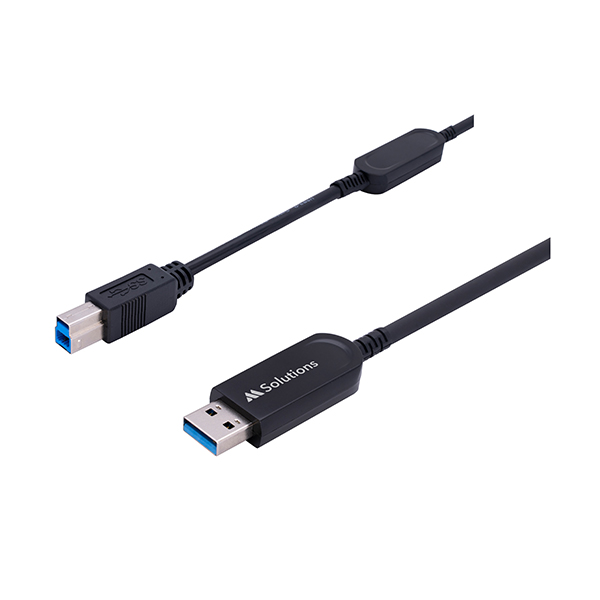

USB 3.0 Type-A to Type-B AOC Cable (male connectors) – 15m / 30m
Description
Our USB3.0 Type-A to Type-B Active Optic Cable is suited for critical and versatile installations where distance is required. This supports USB3.0 superspeed device connectivity with up to 10Gbps of data transfer over a light weight, flexible and ultra-small bend radius (40mm) in a hybrid cable.
Key Features
- Supports USB3.0 – compatible and incompatible versions
- Supports USB2.0 and USB1.1 devices – compatible version only
- Supports all USB 3.0 device types: control, interrupt, bulk and isochronous at up to 10Gbps
- Operates with USB3.0 superspeed host controllers
- Support for Windows, Linux and iOS operating systems
- Plug and Play – no drivers or downloads required
- cables are of CMP (Plenum-rated)
Specifications
- Cable Diameter: 4.5mm
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Operating Humidity: 10-80% non condensing
- Available in Lengths: 15m and 30m
- Package Contents: 1x MS-USBAB-M Cable – 15m or 30m
- Compatability: MS-USBAB-15-BC USB 3.0 AM-BM AOC, (Compatible Version), MS-USBAB-30 USB 3.0 AM-BM AOC, (Incompatible Version)
